Instruction on creating transfer files

1. Run the P-touch Transfer Manager (Windows Version).
([Start] – [All Programs] – [Brother P-touch] – [P-touch Tools] – [P-touch Transfer Manager2.2])

2. Drag and drop the file(s) to be transferred to the Configurations folder of the printer.
The following file formats are supported.

• Label layouts (*.lbx)
• Images as custom symbols (*.bmp)
• Databases (*.csv)

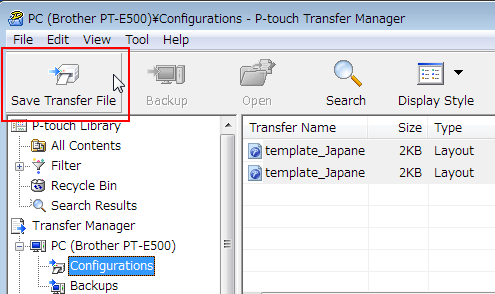

3. Choose all the file(s) to be transferred to the printer, and click "Save Transfer File" button.

4. Save the transfer file in your local hard drive.

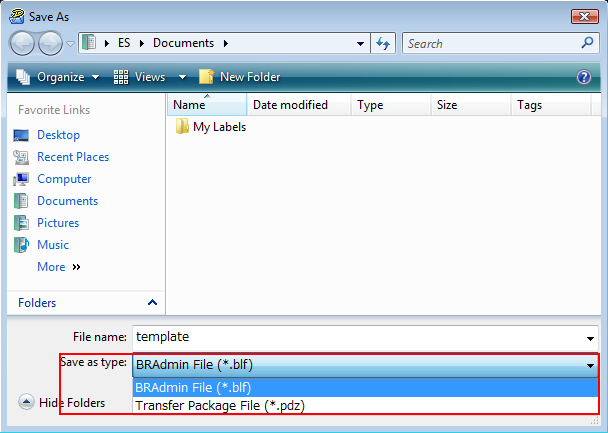

    2 different file types are available depending on the connection method between the mobile device and the printer.

• Choose "BRAdmin File (*.blf)" for Wi-Fi connection
• Choose "Transfer Package File (*.pdz)" for Bluetooth connection
